Custom Bubble Mailers Engineering & Global Procurement Guide: Reducing DIM Weight while Elevating Unboxing UX

Custom bubble mailers provide substantial savings over rigid corrugated mailer boxes by targeting volumetric weight calculations (Dimensional Weight). A standard 9" x 6" x 3" E-flute corrugated box carries a volumetric billing weight of approximately 1.0 to 1.5 lbs regardless of actual SKU weight. In contrast, a padded #2 custom poly bubble mailer containing the same product lays flat during sorting, registering near-zero cubic volume addition and reducing tare packaging weight from ~4 oz to under 0.8 oz.

This volumetric difference reduces courier surcharge tiers across USPS Ground Advantage, FedEx Home Delivery, and UPS Ground. Additionally, inbound freight and warehousing costs drop significantly: 1,000 uninflated bubble mailers occupy less than 15% of the pallet footprint required by 1,000 flat corrugated box blanks.

Navigating environmental compliance depends on substrate selection:
1. PFAS-Free Guarantee: All poly, Kraft, and paper bubble mailers produced by Teal Packaging are manufactured without intentionally added per- and polyfluoroalkyl substances (PFAS), satisfying strict US state regulations (e.g., California AB 1810, New York ECL Article 37) and EU REACH standards.
2. PCR Recycled Content: Our custom poly bubble mailers can be formulated with 30% to 80% Post-Consumer Recycled (PCR) low-density polyethylene resin, helping brands satisfy mandatory recycled-content thresholds under US Extended Producer Responsibility (EPR) legislation.
3. FSC Certification: Paper outer layers are sourced from Forest Stewardship Council (FSC®) certified forests, ensuring responsible forestry management.
4. Curbside Recyclability: For 100% plastic-free mandates, we supply all-paper padded mailers lined with expanding paper honeycomb fiber that can be deposited directly into municipal residential paper recycling streams.

Teal Packaging engineered custom bubble mailers utilize a high-shear, pressure-sensitive hot-melt rubber resin adhesive system formulated for destructive bonding. Once pressed against the lip film, the adhesive cross-links within 30 seconds, forcing the poly or paper substrate to tear upon opening attempts—delivering absolute tamper evidence.

The operating temperature window of our primary seal ranges from -20°F (-29°C) to 140°F (60°C). This ensures that parcels traveling through unconditioned freight hubs during winter drops or summer tarmac storage retain full seal integrity without adhesive flagging or popping open.

Standard poly bubble mailers (LDPE film laminated to PE air bubbles) are classified as #4 flexible plastic film. While generally excluded from automated curbside paper/rigid plastic sorting infrastructure to prevent machinery tangling, co-extruded mono-material LDPE mailers are 100% recyclable via designated retail store drop-off streams (such as NexTrex and store film collection points across North America and the UK).

If 100% curbside residential bin recyclability is mandatory for your brand compliance, we recommend our Curbside Recyclable All-Paper Padded Mailers, which contain zero plastic liners and process seamlessly through municipal paper repulping systems.

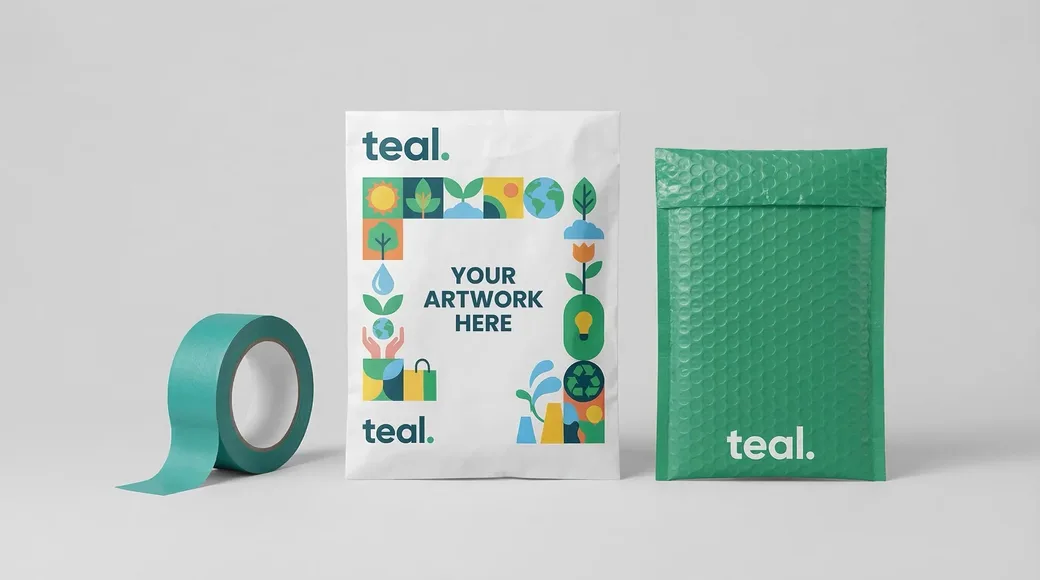

Custom poly bubble mailers are manufactured using multi-layer film co-extrusion technology. The outer layer provides high-brightness printable white or custom Pantone pigment, while the inner surface layer incorporates an opaque dark gray or pitch-black carbon-tinted resin layer.

This light-blocking barrier prevents optical inspection under high-intensity fulfillment center lighting, hiding product silhouettes, brand labels, or high-value electronics inside. Combined with anti-static release liners and tamper-evident destructive tape, it deters theft throughout transit handling networks.

Depending on order volume and graphic complexity, we utilize two primary printing technologies:
1. Central Impression (CI) Flexo Printing (Volumes > 1,000 units): Uses rubber photopolymer plates to transfer fluid water-based inks onto continuous substrate webs at high speeds. Delivers unmatched spot-color saturation and precise Pantone Matching System (PMS) color accuracy (ΔE < 2.0).
2. High-Definition Web Digital Printing (MOQ 50 - 500 units): Direct-to-film digital inkjet technology requiring zero printing plates. Ideal for short runs, variable data QR printing, photographic multi-color gradients, and rapid prototype market testing.

Because bubble mailers expand volumetrically when a 3D object is inserted, measuring flat dimensions alone will result in under-sizing. Use the following engineering formula to determine the minimum usable internal mailer size:

• Mailer Width Required = Product Width + Product Depth (Thickness) + 0.75 Inches (19 mm)
• Mailer Length Required = Product Length + Product Depth (Thickness) + 1.25 Inches (32 mm)

Always allow 0.75" to 1.25" total clearance margin to ensure your product slides past the side heat-weld seams without stress-fracturing the bubble barrier or straining the top closure flap.

Our standard fast-track custom bubble mailer digital program starts at a market-leading 50 units. High-volume flexographic printing runs start at 500 to 1,000 units.

Standard production turnaround is approximately 7 to 10 business days following final digital artwork proof approval. Rush processing is available for time-sensitive launches, shortening plant production to 4 to 6 business days. Free standard ground shipping across the continental United States is included on every order.
